Logo Design Tutorial Using CorelDraw

This is the logo I’m going to teach you. This tutorial is done in CorelDraw X4 version. But I’m sure this can be done using most of previous and newer CorelDraw versions like CorelDraw 12,  CorelDraw X3, CorelDraw X5, CorelDraw X6 and CorelDraw X7 etc…
This is not very hard tutorial. Little knowledge about CorelDraw will be enough to complete this.
ORBIT CO-OP LOGO CORELDRAW
Draw a circle using Ellipse Tool. Fill it any color.
2014-09-30_145548
Remove outline by right clicking on X sign at color palate.
2014-09-30_150552
Get a duplicate copy of the circle by pressing + sign of NUM pad.
Reduce the size of the created circle holding shift key. Fill it with different color.
While pick tool is selected press and hold shift key and click on each circle to select both circle.
Now press Back Minus Front from the tool bar.
2014-09-30_151437
coreldraw logo tutorial
Draw rectangle using Rectangle Tool.
Select both shapes using pick Tool. Press c and press e while both
shapes are selected. (to align centers vertically and horizontally.)
Open Rotate tool as follows.
coreldraw logo tutorial
Select Rectangle and set angle to 30 Degrees. Press apply to duplicate 6 times.
coreldraw logo tutorial
Now you have something like this.
coreldraw logo tutorial
Select all rectangles by selecting pick tool and click on each
rectangle while holding shift key. Now press Weld button at tool bar to all reactangle weld into one shape.
coreldraw logo tutorial
Now select both shapes. Press Back Minus Front button. You have something like this.
coreldraw logo tutorial
Now press Break Apart button.
coreldraw logo tutorial
Select all parts except single like below. Combine all other shapes except that single part.
coreldraw logo tutorial
coreldraw logo tutorial
Select bigger part and fill it using fountain fill dialog box.
coreldraw logo tutorial
coreldraw logo tutorial
coreldraw logo tutorial
Select the bigger part and choose Extrude Tool. Make something like this by adjusting Extrude handle. Set depth to 3.
coreldraw logo tutorial
Now select blue color shape. Use Interactive Fill Tool to give it a gradient like this.
coreldraw logo tutorial
coreldraw logo tutorial
Now Select the Interactive Extrude Tool. Click on the Blue shape.
Click on Copy Extrude Properties button. Now carefully click on Extruded area on the other shape.
coreldraw logo tutorial
coreldraw logo tutorial
coreldraw logo tutorial
Now I'm going to add little bit of drop shadow.
Draw a ellipse under the logo using Ellipse Tool. Fill it with black.
 coreldraw logo tutorial
Press convert to bitmap at the Bitmaps menu. Press OK for the dialog box.
coreldraw logo tutorial
Add Gaussian blur effect for the ellipse.
coreldraw logo tutorial
Radius set to 54 and press OK.
coreldraw logo tutorial

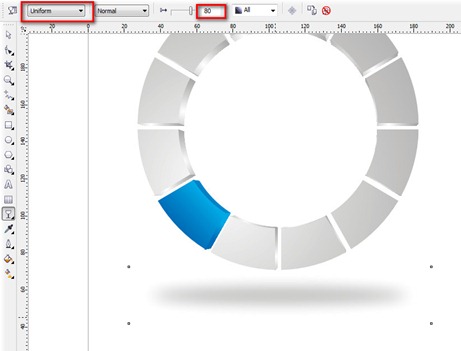

Give about 80 of uniform transparency.
coreldraw logo tutorial
coreldraw logo tutorial
coreldraw logo tutorial
Select the complete orbit and Group it. Choose Add Perspective from the Arrange menu.
coreldraw logo tutorial
Give a perspective like this.
coreldraw logo tutorial
coreldraw logo tutorial
Here is the final Orbit Logo.
ORBIT CO-OP LOGO CORELDRAW
Click here to download the CorelDraw project file. Download
